Overview

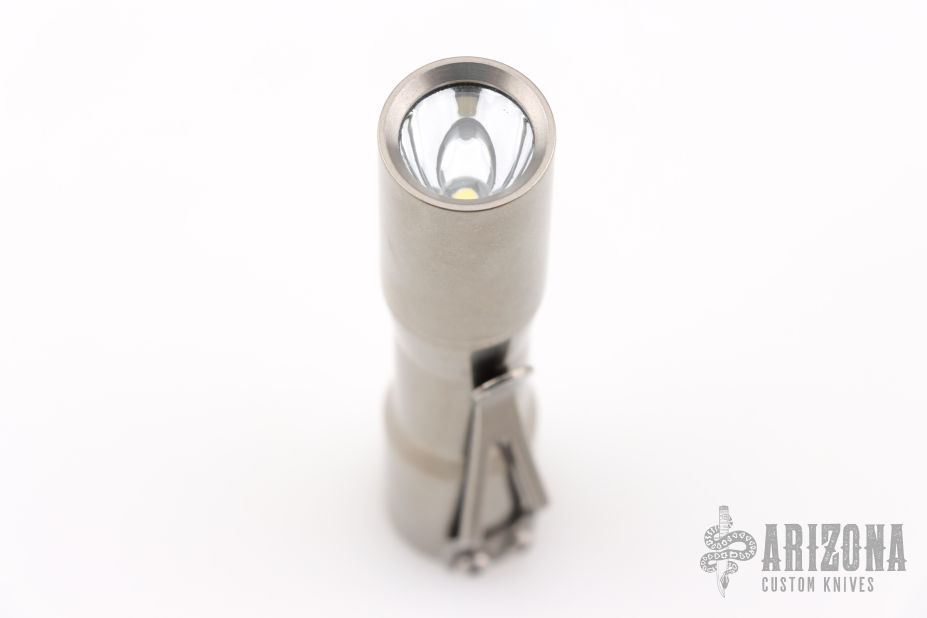

The Mini Arcadian offers the power and programmability characteristic of the CWF brand with the innovative design of the Quantum Chimera driver. Measuring 3.6” in length with a .74” diameter, this flashlight features thermal regulation and low voltage protection as well as a sub-lumen moonlight feature. Powered by a 14500 battery the Mini Arc produces 520 lumens in a smooth beam profile comparable to the larger Arcadian flashlight.
Quantum Chimera
Mode Groups:
1- Moonlight, 5%, 15%, 35%, 50%, 100%
2- Moonlight, 5%, 15%, 35%, 100%
3- Moonlight, 15%, 35%, 100%
4- 5%, 15%, 35%, 50%, 100%
5- 5%, 15%, 35%, 100%
6- 5%, 35%, 100%
7- 15%, 35%, 50%, 100%
8- 15%, 50%, 100%
9- 15%, 100%
10- 50%
Configuration Options:
To enter configuration mode, quickly cycle the switch 10+ times until it starts to flash. Once it starts to flash,
you are in configuration mode. Once in configuration mode, the light will give a solid light and ramp down, if you
want to modify options 2-3 cycle switch during ramp to move to next option.
* Option 1 = Mode group, when light ramps down it will step down and then the group number will blink
followed by another step down. To select the group blinked cycle the switch in the step down cycle after
the group you want to use.
* Option = Memory on/off, when light ramps down it will flash low power and then high power, cycle switch while
flashing low if you want memory off and high if you want memory on.
* Option = Strobe option, when light ramps down it will flash 3 different power levels, cycle switch while
flashing low if you want strobe off, medium for bicycle mode and high for strobe mode. To access these in normal use cycle switch three times rapidly and it will access either strobe programmed when turned on.
Comes with original box and battery. Excellent condition.
